Viterbi Decoder

In digital communication, a Viterbi decoder is used to reverse the effects of a convolutional encoder applied at the transmitter. By analyzing the received signal trellis, it recovers the original bit stream with optimal error correction. It is widely employed in telemetry, satellite communications, and aerospace data links where signal quality over RF channels must be maximized.

Viterbi decoding is used wherever convolutional coding is applied to protect data transmitted over noisy or fading RF channels. In aerospace and defense telemetry, it recovers flight test PCM data with reduced bit errors. Lumistar products apply it in ground station receivers, bit synchronizers, and IF combiners supporting IRIG 106 and NASA-standard puncture matrix configurations.

Lumistar supports Viterbi decoding at rate 1/2 with constraint length k=7 as the standard NASA configuration. Punctured rates of 2/3, 3/4, 5/6, and 7/8 are also available as options across bit synchronizer and receiver product lines. Custom configurations can be arranged through factory consultation for specialized telemetry applications.

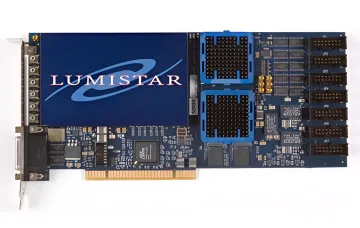

Yes. Lumistar's firmware-based architecture allows Viterbi decoding to be added electronically via a firmware license file upgrade, including on the LS-35-R IF Receiver/Combiner and Bit Synchronizer product lines. This means customers can purchase a base configuration and enable Viterbi decoding later without replacing hardware — minimizing capital expenditure and system downtime.

Viterbi decoding is available across the Lumistar Telemetry Receiver Systems (LS-28-DRSM series), the LS-35-R IF Receiver/Combiner/Modulator, and the Bit Synchronizer product family (LS-45-B, LS-45-DB, LS-45-E, LS-45-P series). It is offered as an optional or integrated feature depending on the specific model and firmware license selected at the time of order.

Yes. Lumistar's Viterbi decoder implementations follow the NASA-standard puncture matrix for rate 1/2, k=7 convolutional codes, and optional LDPC decoding is implemented in accordance with IRIG 106. These standards ensure interoperability with federal test ranges, DoD telemetry systems, and aerospace ground station infrastructure operating under IRIG-218 and CCSDS data formats.
