Understanding Electronic Pressure Transmitters and Applications

Transmitters are broadly categorized as: (1) RF transmitters, which broadcast modulated signals over radio frequencies — such as telemetry test transmitters used in aerospace; (2) sensor/process transmitters, which convert physical measurements like pressure or temperature into standardized signals; and (3) data link transmitters, which encode and send digital data streams over wired or wireless communication channels.

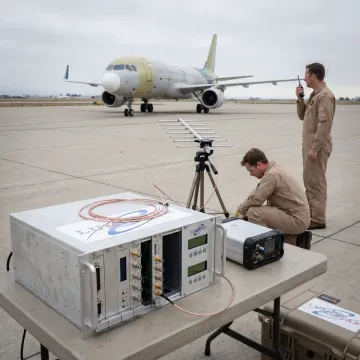

Lumistar's LS-18-P1 is a practical example of an RF telemetry test transmitter. It generates modulated RF signals across bands from 1435 MHz to 5250 MHz, supports SOQPSK and Multi-HCPM modulation formats, and achieves data rates up to 60 Mbps. It is used in aerospace flight test programs to simulate airborne transmitters and verify ground station receive chain performance.

Lumistar test transmitters cover multiple licensed telemetry bands including 1435–1535 MHz, 1710–1850 MHz, 2200–2395 MHz, 2185–2485 MHz, 4400–4950 MHz, and 5091–5250 MHz. Custom frequency options from 50 MHz to 6800 MHz are also available upon request, providing broad coverage for diverse aerospace and defense test range requirements.

Lumistar test transmitters support a comprehensive suite of IRIG and ARTM modulation formats, including SOQPSK (Tier 1), Multi-HCPM (Tier 2), MS-PCFM (Tier 0), BPSK, QPSK, OQPSK, SQPSK, AUQPSK, AQPSK, GMSK, and Linear PM. Optional FEC encoding includes Viterbi, LDPC, Convolutional R1/2, and Reed-Solomon coding schemes.

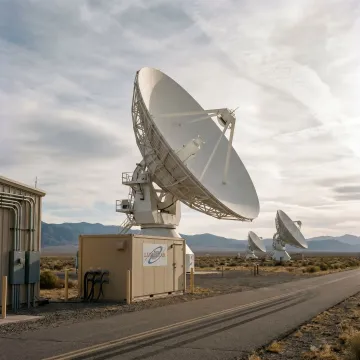

Yes. Lumistar test transmitters comply with IRIG 106 Chapter 4 Class I and Class II data format standards, as well as IRIG 200 Formats A, B, and G. They also meet ARTM Tier 0, Tier 1, and Tier 2 standards, making them suitable for use on federally licensed test ranges and in programs requiring strict telemetry standards compliance.

Lumistar test transmitters offer multiple control interfaces including USB 2.0 and RS232 serial ports with simultaneous operation capability, as well as Ethernet (TCP/IP) control using Lumistar's proprietary software application. The baud rate is software-selectable, defaulting to 57.6 KBaud, and custom configurations such as RS422 data input can be specified at time of purchase.
